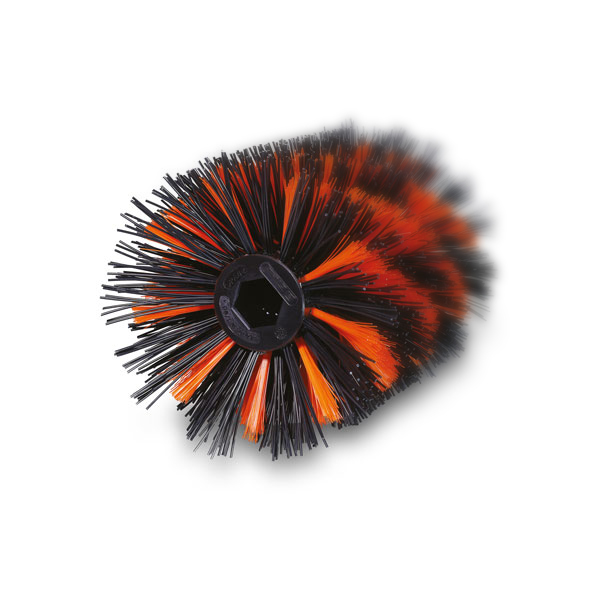

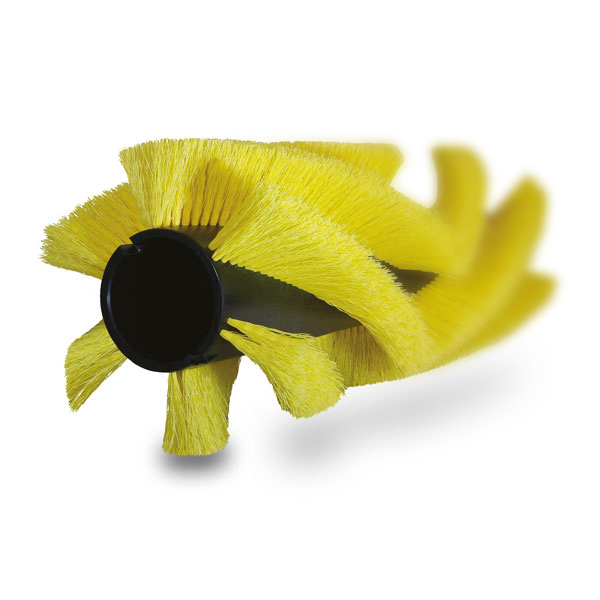

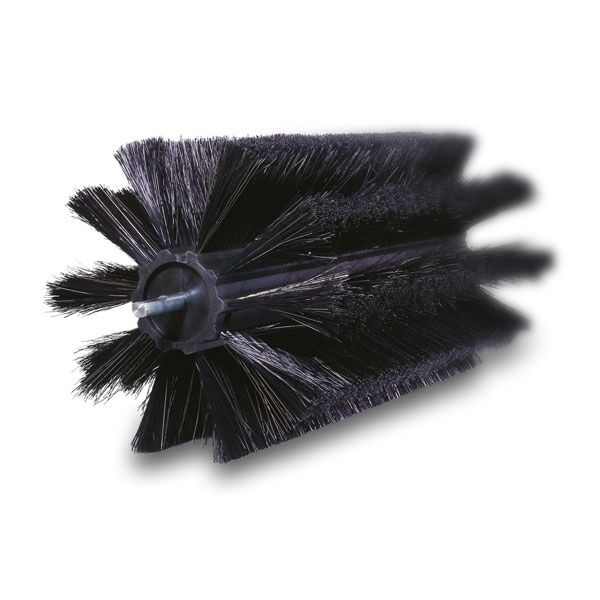

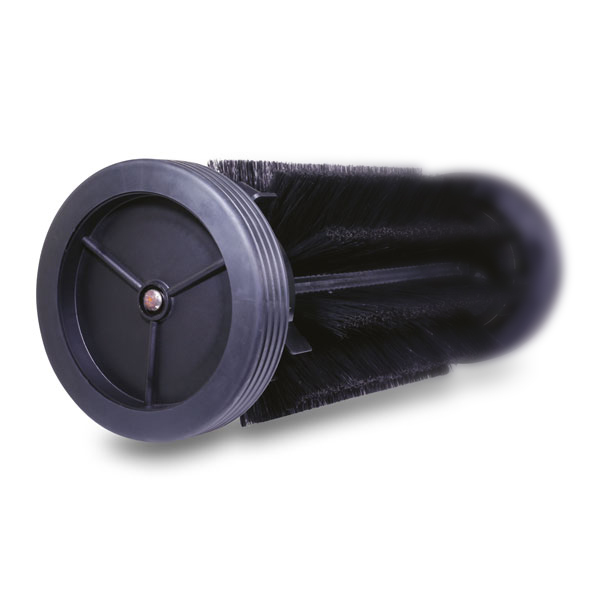

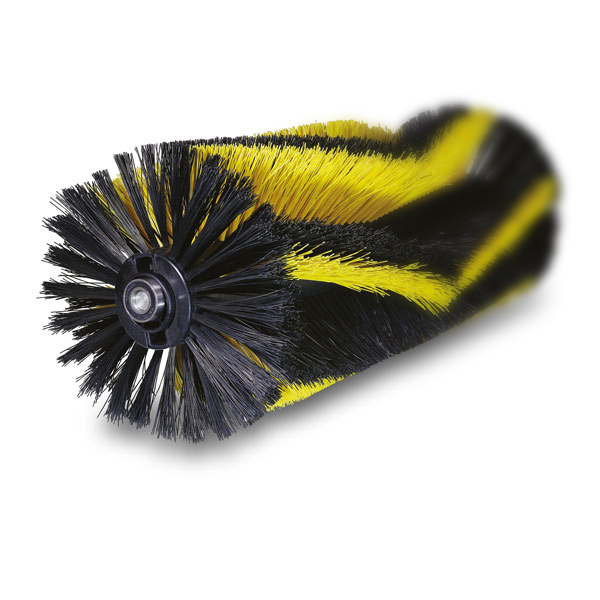

Sweeping roller brushes
Indoor and outdoor

Sweeping roller brushes with a highly smooth run due to balanced body design and highest product quality.

  • Gutmann_Leonberg_Kehrwalzen_fuer_Reinigungsmaschinen5.jpg
  • Gutmann_Leonberg_Kehrwalzen_fuer_Reinigungsmaschinen.jpg
  • Gutmann_Leonberg_Kehrwalzen_fuer_Reinigungsmaschinen3.jpg
  • Gutmann_Leonberg_Kehrwalzen_fuer_Reinigungsmaschinen2.jpg
  • Gutmann_Leonberg_Kehrwalzen_fuer_Reinigungsmaschinen6.jpg

Areas of application

Sweeping machines

Automatic sweepers

Sweeping devices

Sweeping vehicles

Highlights

Perfectly matched to machine and application

Highly smooth run due to balanced body design

Optimal sweeping performance due to row sequencing

Combination of fill types for coarse and fine dirt

Long service life due to high-quality fill types

Product data sheet

Zur Ansicht der technischen Daten, bitte Querformat wählen.

Technical data

Overall dimension

Length/Width/Height

≤ 1200 mm / – / –

Diameter

≤ 400 mm

Body

Diameter

≤ 250 mm

Wall thickness

6 - 20 mm

Material Outddor





PP, PA6, PA6.6, PA6.10, PA6.12, PET, PBT, antistatic materials, conductive synthetic fibres, abrasive synthetic fibres (filled with SiC, aluminum oxide Al2O3 or diamond), variety of animal hair and bristles as well as plant fibres, wire bristles (brass, steel)

Material Indoor

PP, PA6, PA6.6, PA6.10, PA6.12, PET, PBT, antistatic materials, wire bristles (brass, steel)

Colours

All basic colours, as well as many common colours, special colours possible

Fill

Fill Materials

PP, PA6, PA6.6, PA6.10, PA6.12, PET, PBT, antistatic materials, wire bristles (brass, steel)

Density of brush pattern

Light, medium

Brush pattern

Linear, spiral, single row, double row, chevron, W-shaped, double helix, zig-zag, segmented

Properties

Soft, medium, hard

Colours

All common colours, special colours possible

Connection

Connection

Integrated bearing, external bearing, positive drive, belt drive, internal drive
